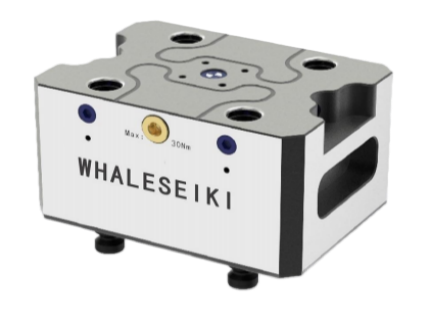

Zero Point Quick Change System Fixture 1

Pneumatic unlock

Pneumatic automatic chip removal

Unlocking pressure: 0.6MPa

Pressurized air pressure: 0.5MPA-0.6mpa

Repeat positioning accuracy 0.005mm

Features built in and embedded in customer designed fixture base plate.
The application is designed to reduce fixture replacement time and can be used in metal cutting and non-cutting fields.
It has the characteristics of large clamping force and tension. The air pressure is released and the spring force is mechanically locked. For greater clamping force, pressurized pressure can be provided. In the locked state, the pressure source can be cut off at any time, because normal locking does not require pressure.

Specifications

Pneumatic unlock

Pneumatic automatic chip removal

Unlocking pressure: 0.6MPa

Pressurized air pressure: 0.5MPA-0.6mpa

Repeat positioning accuracy 0.005mm

Features built in and embedded in customer designed fixture base plate.

The application is designed to reduce fixture replacement time and can be used in metal cutting and non-cutting fields.

It has the characteristics of large clamping force and tension. The air pressure is released and the spring force is mechanically locked. For greater clamping force, pressurized pressure can be provided. In the locked state, the pressure source can be cut off at any time, because normal locking does not require pressure.
