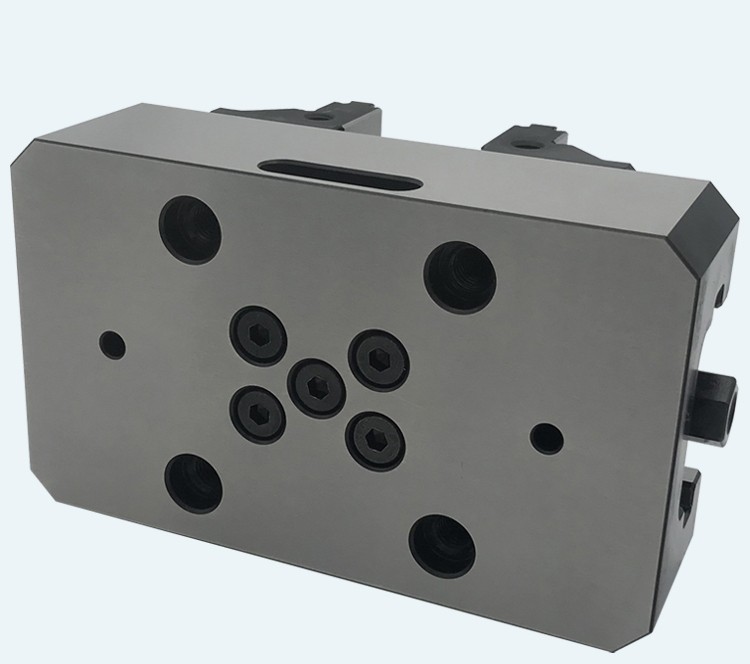

5 axis Self-centering Vises XH77-85

Model: 5 axis Self-centering Vises XH77-85

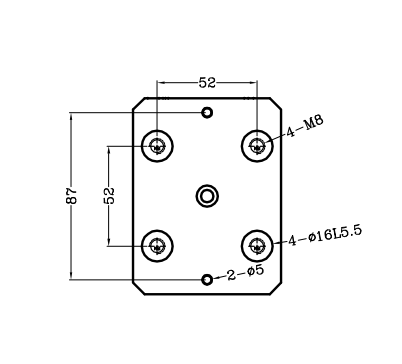

Specifications: Bidirectional self-centering, repeatability less than 0.02mm, maximum gripping force 2000N. Fixed center distance 52mm, fixed on the table or tray with φ16 screw, maximum driving torque 75Nm

Application: Suitable for vertical and horizontal precision machining equipment, machining five surfaces at a time, can be customized special jaws.

Model: 5 axis Self-centering Vises XH77-85

Specifications: Bidirectional self-centering, repeatability less than 0.02mm, maximum gripping force 2000N.

Fixed center distance 52mm, fixed on the table or tray with φ16 screw, maximum driving torque 75Nm

Application: Suitable for vertical and horizontal precision machining equipment, machining five surfaces at a time, can be customized special jaws.
