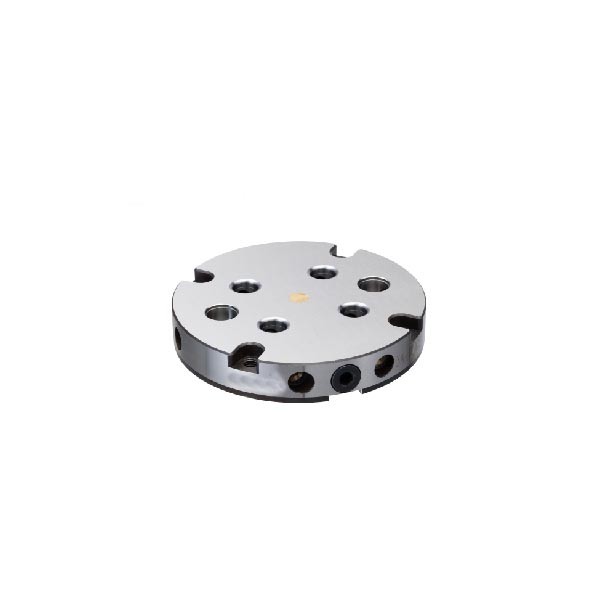

5-axis Manual Zero Point Quick Change Plate 1

Version
φ157x27mm,Resetting precisionLess than 0.005mm, use with φ16 drawbar, Set-up distance 52mm,Torque30Nm

with mounting bores at a distance of 100 mm

Net weight 3.5kg

Version

φ157x27mm,Resetting precisionLess than 0.005mm, use with φ16 drawbar, Set-up distance 52mm,Torque30Nm

with mounting bores at a distance of 100 mm

Net weight

3.5kg

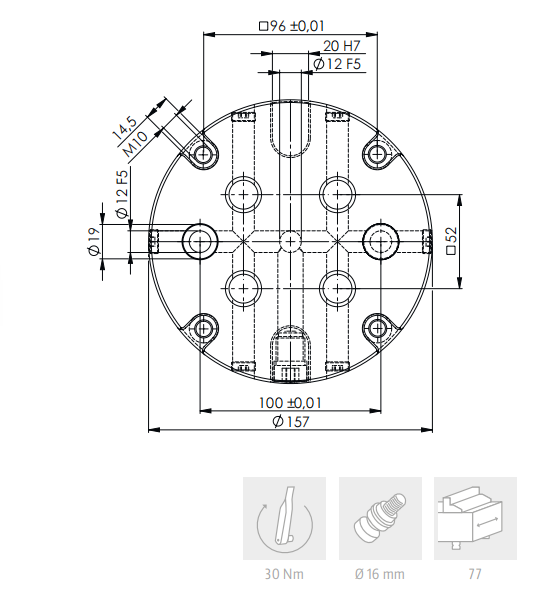

QUICK•POINT 52, ROUND PLATE Ø 6 .1 8 × 1 .0 6 ", W I T H M O U N T I N G B O R E S A N D A DA P T E R B O R E S ITEM NO. DIMENSIONS MOUNTING BORES WEIGHT 145900 Ø 6.18 × 1.06" (Ø 157 × 27 mm) 3.94" (100 mm) distance 7.71 lbs (3.5 kg)
