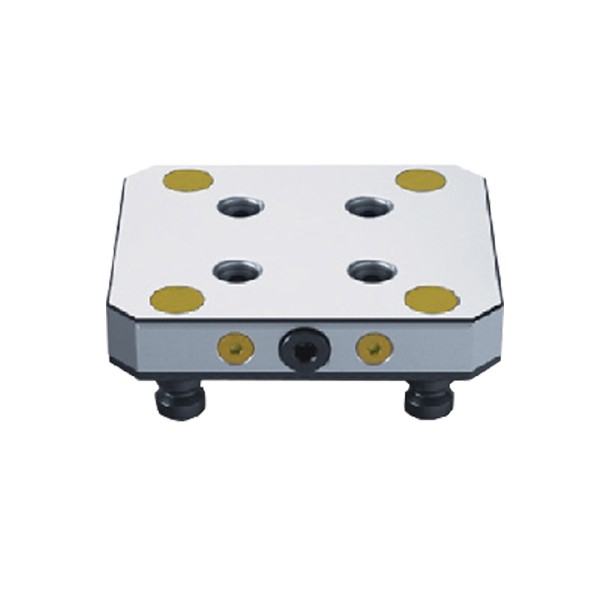

5-axis Manual Zero Point Quick Change Plate 7

5-axis Manual Zero Point Quick Change Plate 7

Version

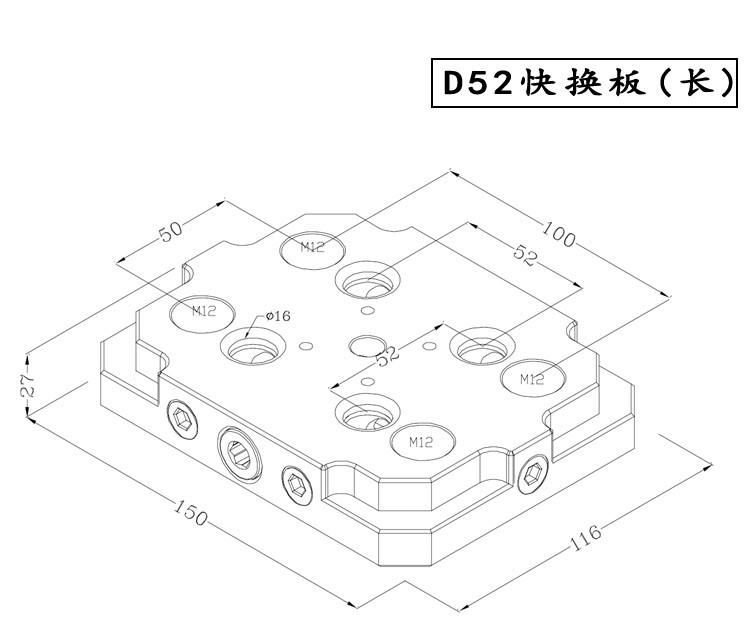

150x126x27mm,Resetting precisionLess than 0.005mm, use with φ16 drawbar, Set-up distance 52mm,Torque30Nm

It can easily and quickly realize the conversion between the 52mm and 96mm hole positions of the spigot

Net weight 3.4kg

Version

150x126x27mm,Resetting precisionLess than 0.005mm, use with φ16 drawbar, Set-up distance 52mm,Torque30Nm

It can easily and quickly realize the conversion between the 52mm and 96mm hole positions of the spigot

Net weight

3.4kg

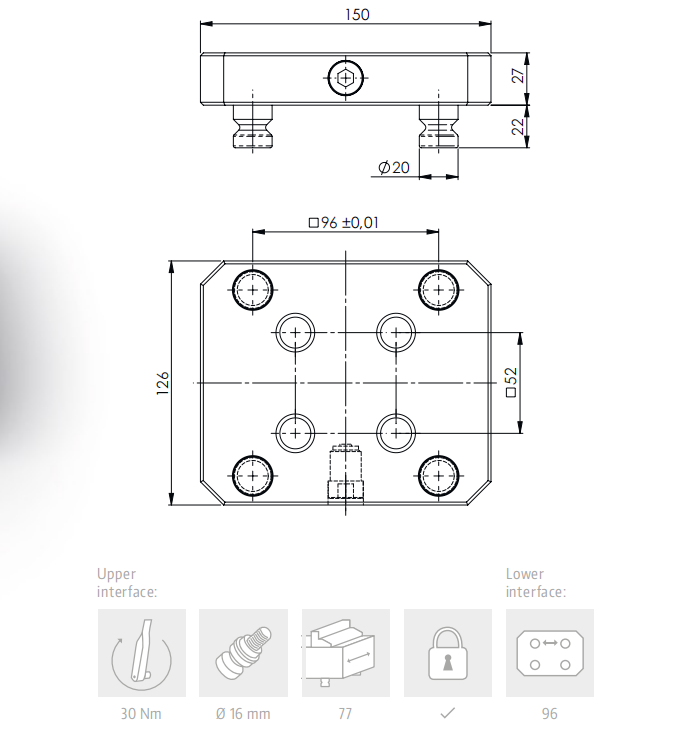

QUICK POINT® 52 ADAPTER PLATE 5 . 9 0 × 4 . 9 6 × 1 .0 6 ", W I T H C L A M P I N G S T U D S Ø 2 0 M M ITEM NO. DIMENSIONS WEIGHT 145160 5.90 × 4.96 × 1.06" (150 × 126 × 27 mm) 7.50 lbs (3.4 kg)
